Electric Resistance Welding Pipe (ERW) | |||
API 5L PLS1,PLS2 | |||
Oil and Gas Line pipe | Size: | OD:114mm - 812.8mm (4"-32"),Thk: 4-22mm | |
Lenghth: | 3-20m | ||
Standard: | API SPEC 5L ISO 3183, GB/T 9711.1, GB/T 9711.2, GB/T 9711.3 | ||
Grade: | PLS1: | L245 X42~X70 | |
| PLS2: | L245M X42M~X70M | |
Usage: | used to transport gases, water, and petroleum in petroleum and natural gas industries | ||
Medium and Low Pressure Straight Seam Pipe | Size: | OD:114.3mm - 610mm (4"-24"),Thk: 3.5-22mm | |
Lenghth: | 3-20m | ||
Ends: | plain ends and beveled ends | ||
Surface: | Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy, Fusion Bond Epoxy, 3-layers PE) | ||
Packing: | Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps. | ||
Standard and Grade: | BS: | 1387 | |
| EN10217: |
S185, S235,S235JR, S235 G2H, S275, S275JR, S355JRH, S355J2H, | |
| API 5L: | A, B, X42, X46, X52, X56, X60, X65 X70 | |
| ASTM A 53: | Gr. A, Gr.B, Gr.C | |
| ASTM A252 | GR.B GR.C | |
| ASTM A500 | GR.B | |
| GB/T9711: | L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555 | |
| GB/T3091, SY/T5037, SY/T 5040,CJ/T 3022 | Q195, Q215, Q235, Q275, Q295, Q345, 08F, 08, 08AL, 08F, 10F, 10, HG5, DF08 SPHC, M8 | |
Coating Standard: | ANSI-AWWA C104-A21.4,ISO21809,DIN30670 | ||
Structural Steel Pipe | Size: | OD:114mm - 812.8mm (4"-32"),Thk: 4-22mm | |
Lenghth: | 3-18m | ||
Standard and Grade: | API 5L: | GR B, X42, X46, X56, X60, X65, X70 | |
| ASTM A 53: | Gr. A, Gr.B | |
| EN: | S275, S275JR, S355JRH, S355J2H | |
| GB: | Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555 | |
Surface: | Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement | ||
Test: | Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Impact Test), Exterior Size Inspection, Hydrostatic Test. | ||
Mill Test Certificate: | EN 10204/3.1B | ||

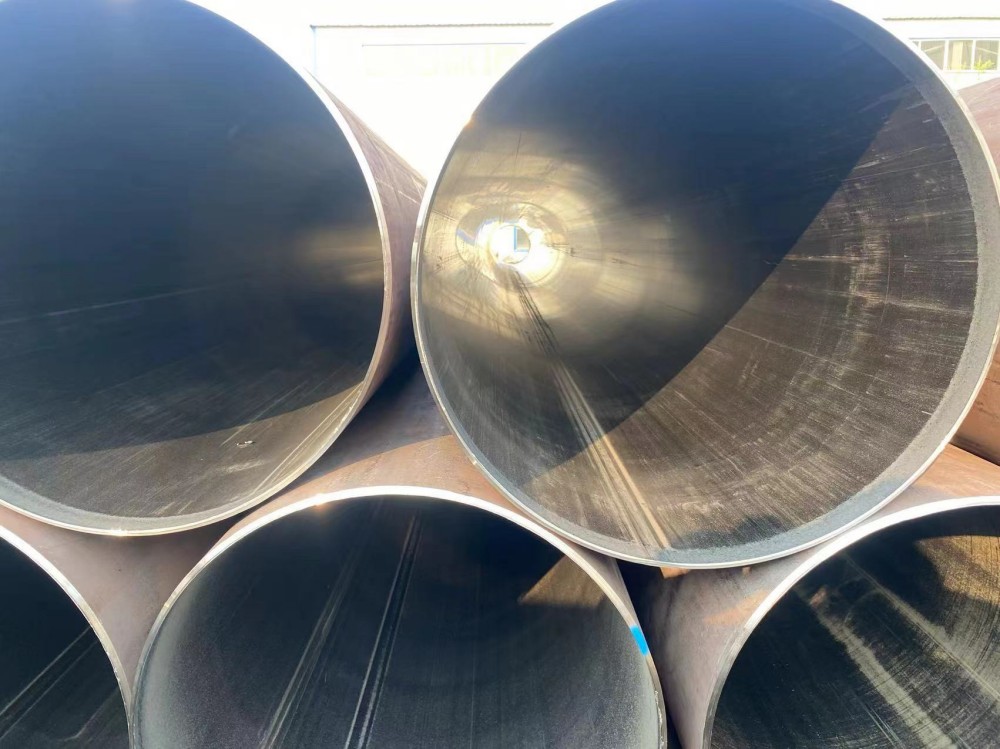

Longitudinally Submerged Arc Welding Pipe (LSAW) | |||
API 5L PLS1,PLS2,API 5CT | |||
Oil and Gas Line Pipe | Size: | OD:325mm - 2020mm,Thk: 7-100mm | |
Length: | 3-13m | ||
Standard: | API SPEC 5L ISO 3183, GB/T 9711.1, GB/T 9711.2, GB/T 9711.3 | ||
Grade: | PLS1: | L245 X42~X70 | |
| PLS2: | L245M X42M~X80M | |
Usage: | used to transport gases, water, and petroleum in petroleum and natural gas industries | ||
Medium and Low Pressure Straight Seam Pipe | Size: | OD:325mm - 2020mm,Thk: 7-100mm | |
Lenghth: | 3-13m | ||
Ends: | plain ends and beveled ends | ||
Surface: | Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy, Fusion Bond Epoxy, 3-layers PE) | ||
Packing: | Bare or as customer required | ||
Standard and Grade: | EN10217: | S185, S235,S235JR, S235 G2H, S275, S275JR, S355JRH, S355J2H | |
| API 5L: | A, B, X42, X46, X52, X56, X60, X65 X70 | |
| ASTM A 53: | Gr. A, Gr.B, Gr.C,Gr.D | |
| ASTM A252 | GR.B GR.C | |
| ST37,ST44,ST52 | ||
| GB/T9711: | L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555 | |
| GB/T3091, SY/T5037, SY/T 5040,CJ/T 3022: | Q195, Q215, Q235, Q275, Q295, Q345, 08F, 08, 08AL, 08F, 10F, 10, HG5, DF08 SPHC, M8 | |
Coating Standard: | ANSI-AWWA C104-A21.4,ISO21809,DIN30670 | ||
Structural Steel Pipe | Size: | OD:325mm - 2020mm,Thk: 7-100mm | |
Lenghth: | 3-12.5m | ||
Standard: | API 5L,API 5CT,ASTM A53,EN10217,DIN2458,IS 3589,GB/T3091,GB/T9711 | ||
Grade: | API 5L: | GR B, X42, X46, X56, X60, X65, X70 | |
| ASTM A 53: | Gr. A, Gr.B,Gr.C | |
| EN: | S275, S275JR, S355JRH, S355J2H | |
| GB: | Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555 | |
Surface: | Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement | ||
Test: | Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test.X-ray Test. | ||
Mill Test Certificate: | EN 10204/3.1B | ||
